# F5の設定

F5 BIG-IP APMとのKeeperオンプレミスSSOコネクト連携設定

{% hint style="info" %}
F5との完全なクラウドベースの統合については、[KeeperクラウドSSOコネクト](https://docs.keeper.io/sso-connect-cloud/jp/)をご参照ください
{% endhint %}

### F5

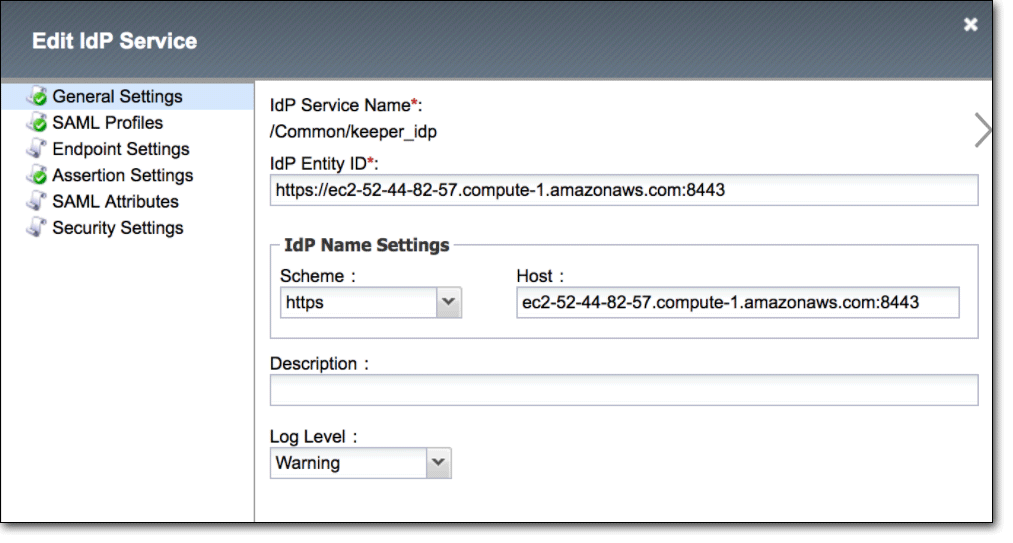

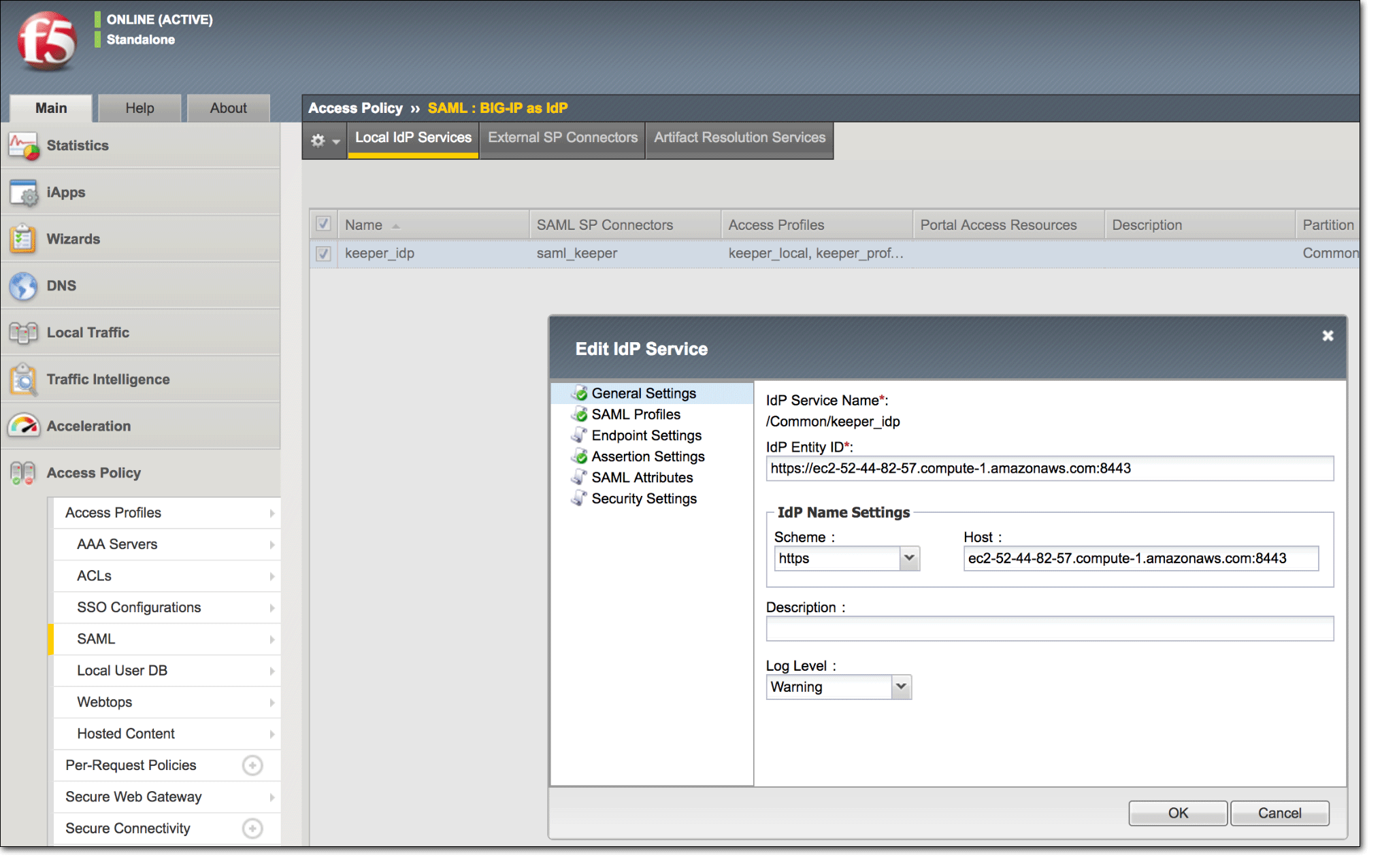

F5 BIG-IP APMで、Keeperプラットフォーム用の新しいSAML IdPサービスを設定します。\
\

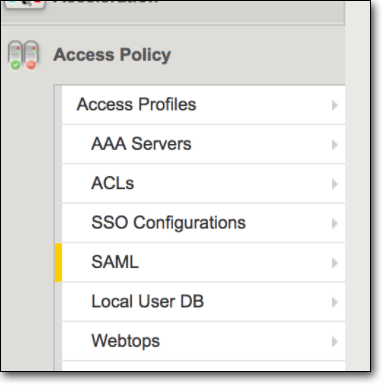

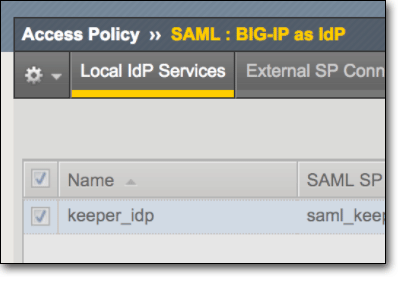

**\[Access Policy]** > **\[SAML]** > **\[BIG-IP as IdP]** > **\[Local IdP services]** に移動します。

<figure><img src="https://2257682436-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpnnyqlSSLL0TJdycg6le%2Fuploads%2Fgit-blob-e310d196741f37db84b8f454e10e3044e02fcf9b%2Fsso-step-141b.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://2257682436-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpnnyqlSSLL0TJdycg6le%2Fuploads%2Fgit-blob-e4ec2639820226b1afe3d5b718158fab8f7807d9%2Fsso-step-142b.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://2257682436-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpnnyqlSSLL0TJdycg6le%2Fuploads%2Fgit-blob-ceb5d9693b76e8d3eae1002e4cc922b129dd30f1%2Fsso-step-143b.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://2257682436-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpnnyqlSSLL0TJdycg6le%2Fuploads%2Fgit-blob-3ed16ee67fd4403788580e2f8e1c5f79b626a759%2Fsso-step-144b.png?alt=media" alt=""><figcaption></figcaption></figure>

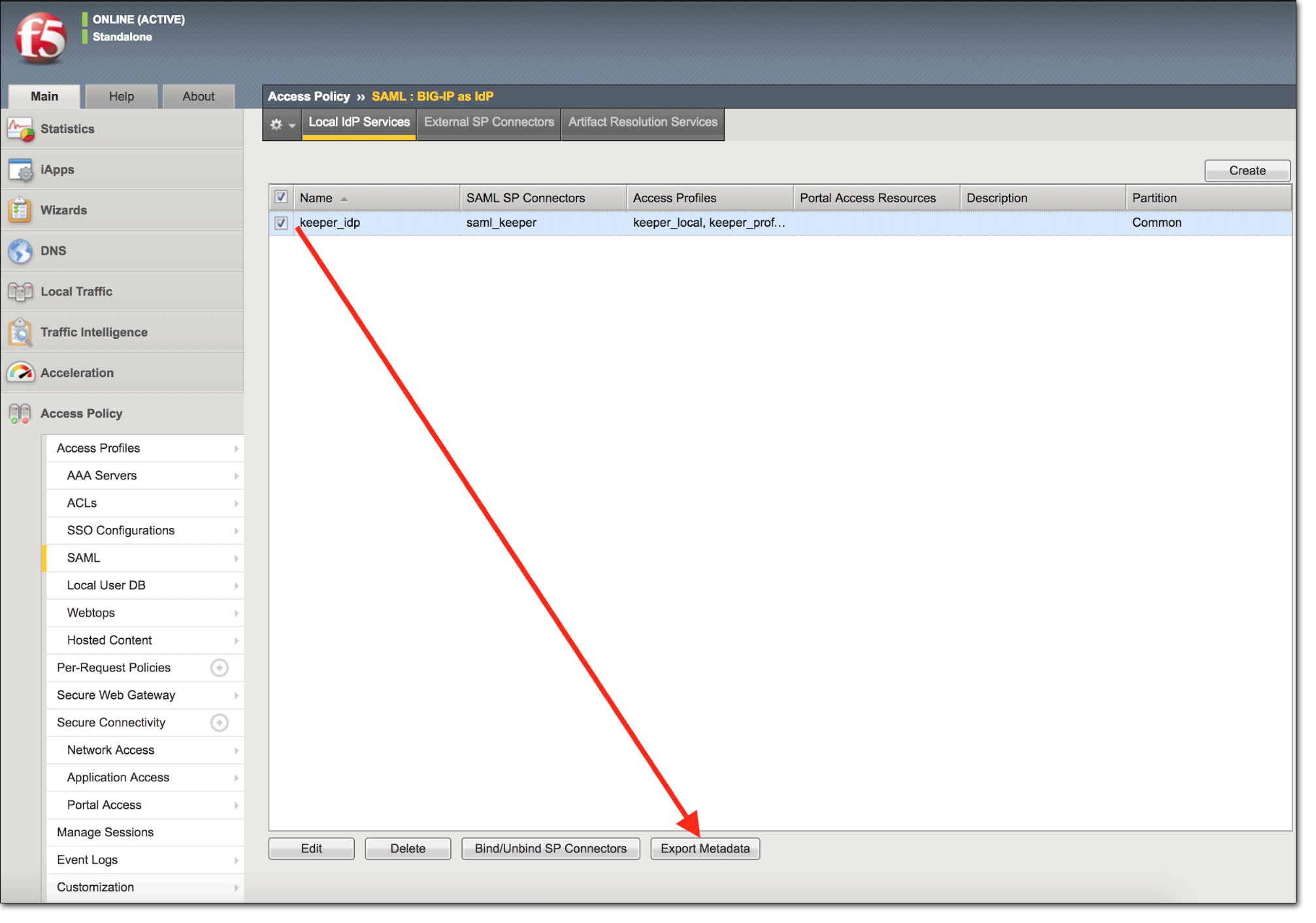

**\[Access Policy]** > **\[SAML: BIG-IP as IdP - Local IdP Services]** に移動します。該当するIdP接続ポイントを選択し、 **\[Export Metadata]** を選択します。

<figure><img src="https://2257682436-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpnnyqlSSLL0TJdycg6le%2Fuploads%2Fgit-blob-b79ec0fa757ffab97f10618508d205c37b6150b2%2Fsso-step-145b.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://2257682436-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpnnyqlSSLL0TJdycg6le%2Fuploads%2Fgit-blob-947b3298d1fd7ab7cf89734bab39697d54d74d0c%2Fsso-step-146b.png?alt=media" alt=""><figcaption></figcaption></figure>

このファイルは、Keeper SSOコネクトがインストールされているサーバーにアップロードします。以降の手順で必要になります。\
\
F5 BIG-IP APMから抽出したメタデータファイルをSSOコネクトにインポートします。

<figure><img src="https://2257682436-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpnnyqlSSLL0TJdycg6le%2Fuploads%2Fgit-blob-234484075ebdadae117df4e712541252b07e46a1%2Fsso-step-147b.png?alt=media" alt=""><figcaption></figcaption></figure>

**\[保存]** を選択して設定を保存し、すべての設定が正しいことを確認します。\
\
**\[メタデータをエクスポート]** リンクから、F5 BIG-IP APMの設定用のKeeper SSOコネクトメタデータファイルをエクスポートします。

<figure><img src="https://2257682436-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpnnyqlSSLL0TJdycg6le%2Fuploads%2Fgit-blob-475ba8415ce6c622f87960155b52980ab7693d69%2FConfig_1_D.png?alt=media" alt=""><figcaption></figcaption></figure>

これでKeeper SSOコネクトの設定は完了です。


---
