# Devo

### Overview

Keeper supports event streaming into Devo deployments. External logging is real-time, and new events will appear almost immediately. Setup instructions are below.

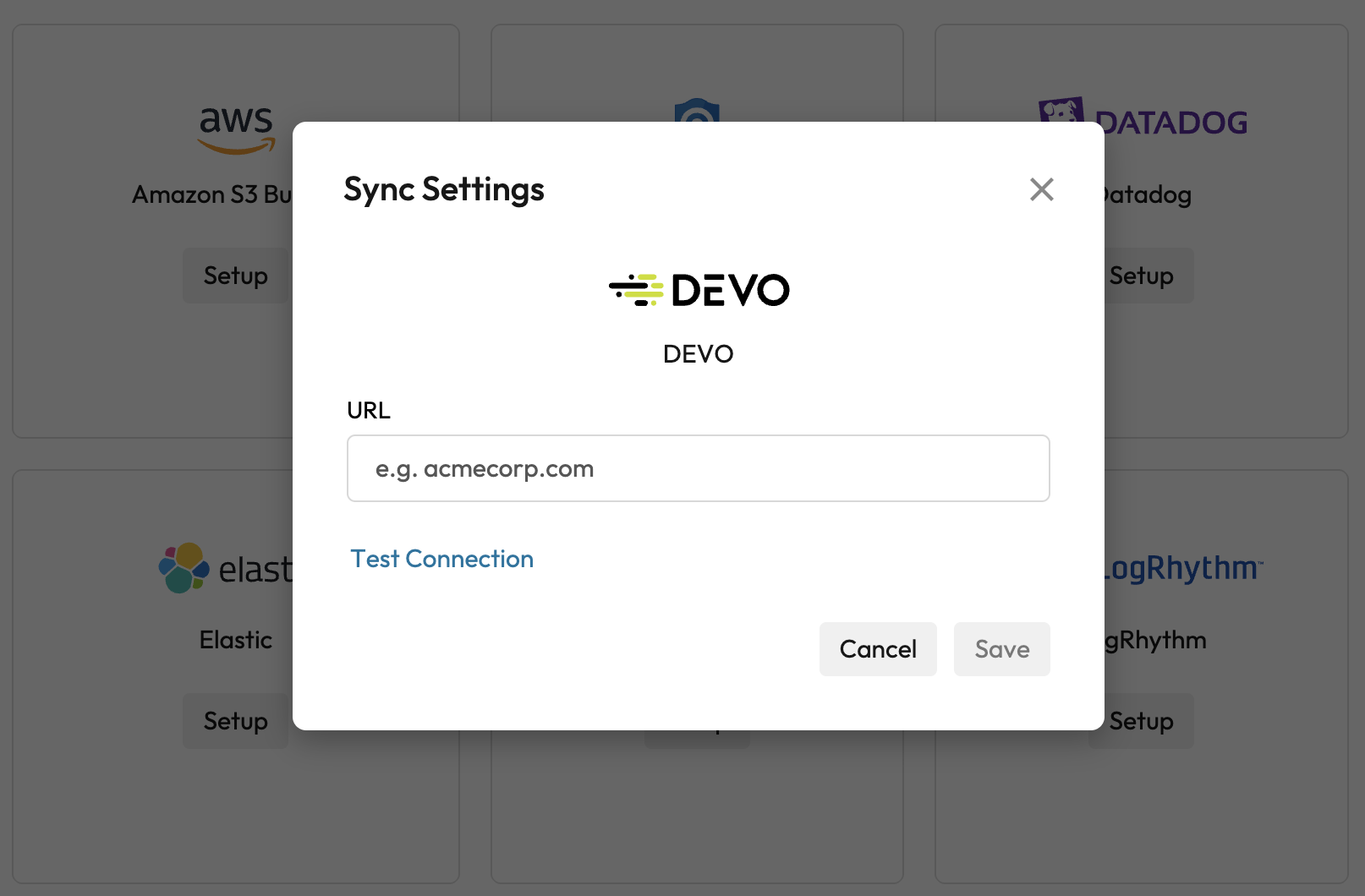

<figure><img src="https://4290574019-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LO5CAzpxoaEquZJBpYz%2Fuploads%2FF3a6T5hBe7DckUtd6lGM%2Fimage.png?alt=media&#x26;token=ab1a58a0-512d-4c78-b928-b6ae7eb23d99" alt=""><figcaption><p>Devo Integration Settings</p></figcaption></figure>

Devo uses a standard "Syslog" push capability over TCP.

**Ports**\
TCP Ports 514 and 6514 (TLS)

**Fields Exported**\
"audit\_event", "username", "client\_version", "remote\_address", "channel", "result\_code", "email", "to\_username", "client\_version\_new","username\_new", "file\_format", "record\_uid", "folder\_uid", "folder\_type", "shared\_folder\_uid", "attachment\_id", "team\_uid", "role\_id"

**Payload Format**\
Pipe-delimited, e.g. "audit\_event=login|username=<bob@foo.com>|..."

{% hint style="info" %}
Important: Ensure that the endpoint is using a valid signed SSL certificate. Keeper's systems will refuse to connect to an invalid or self-signed endpoint.\
\
Also, ensure that your Devo server allows traffic from Keeper servers. See [Firewall Configuration](https://docs.keeper.io/en/enterprise-guide/event-reporting/firewall) page.
{% endhint %}
