# Google Cloud Secret Manager Sync ![](https://762006384-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MJXOXEifAmpyvNVL1to%2Fuploads%2FmqGoDtyLNTaLkl9bVfCi%2Fdatasource-ksm-aws.jpg?alt=media\&token=2703ca39-f530-4afd-9319-e86f445225e8) ## About The Keeper Secrets Manager CLI tool [`sync` command](https://docs.keeper.io/en/keeperpam/secrets-manager/secrets-manager-command-line-interface/sync-command) allows you to push secrets from the Keeper Vault to a target **GCP Secret Manager** project, overwriting the existing values in the target location. This allows the Keeper Vault to be the single source of truth for any services or scripts in GCP that utilize GCP Secret Manager. ## Features * Use secrets from the Keeper Vault as the source of truth for GCP Secret Manager * Seamlessly start using secrets from the Keeper Vault with your existing GCP scripts and services ## Prerequisites * Keeper Secrets Manager access (See the [Quick Start Guide](https://docs.keeper.io/en/keeperpam/secrets-manager/quick-start-guide) for more details) * Secrets Manager add-on enabled for your Keeper subscription * Membership in a Role with the Secrets Manager enforcement policy enabled * A Keeper [Secrets Manager Application](https://docs.keeper.io/en/keeperpam/about/terminology#application) with secrets shared to it * See the [Quick Start Guide](https://docs.keeper.io/en/keeperpam/quick-start-guide#2.-create-an-application) for instructions on creating an Application * A GCP account with GCP Secret Manager, and optionally the ability to create IAM service account credentials ## Setup ### 1. Configure Keeper Secrets Manager CLI {% hint style="info" %} You can skip this step if the KSM CLI is already configured on your machine. {% endhint %} To configure the KSM CLI tool, a profile needs to be created with the Keeper Secrets Manager One Time Access Token. The simplest way to do this is to initialize the default profile with the following command: `ksm profile init ` For information on creating multiple profiles and other options, see the [profile documentation](https://docs.keeper.io/en/keeperpam/secrets-manager/secrets-manager-command-line-interface/profile-command) ### 2. Set GCP Permissions To use the KSM sync to GCP, GCP [Secrets Manager](https://console.cloud.google.com/security/secret-manager) requires standard IAM security credentials with `Secret Manager Admin` role enabled for the project or on the service account principal to sync. Secret Manager Access control with IAM: GCP instructions for creating Service Account Credentials *(optional)*: ### 3. Create GCP Credentials Record The KSM CLI needs the credentials for the GCP service account to set secrets. These credentials are stored in a Keeper record which the CLI tool can access using Keeper Secrets Manager. Record fields with the following labels are required on the credentials record: `"Google Cloud Project ID"`\ `"Google Application Credentials"` - *optional* {% hint style="info" %} `"Google Application Credentials"` field is optional and needed only when Service Account Credentials are used. By default, GCP clients use [Application Default Credentials](https://cloud.google.com/docs/authentication/provide-credentials-adc) which can be created using [gcloud CLI](https://cloud.google.com/sdk/docs/install) ``` gcloud auth application-default login ``` When no longer need these credentials can be revoked: ``` gcloud auth application-default revoke ``` {% endhint %} #### (Method 1) Create a GCP Credentials Custom Record Type A custom record type can be created with the required fields, which makes it easy and clean to create a record. To create a custom record type, go to the "Custom Record Types" tab in the Keeper Vault and hit "Create Type". Create a new record type with hidden fields that have the correct field label, then click "Publish" to create the new record type.

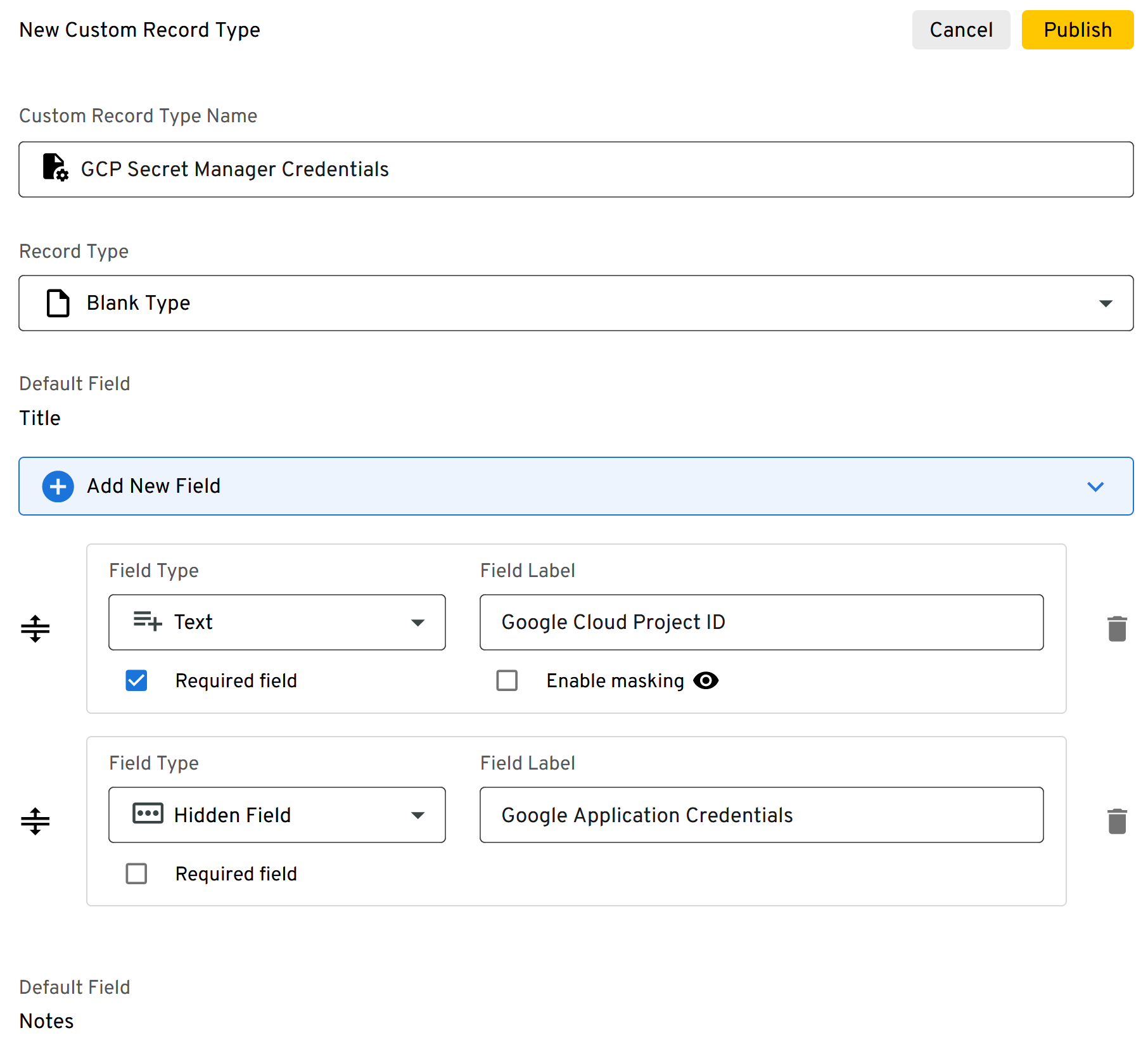

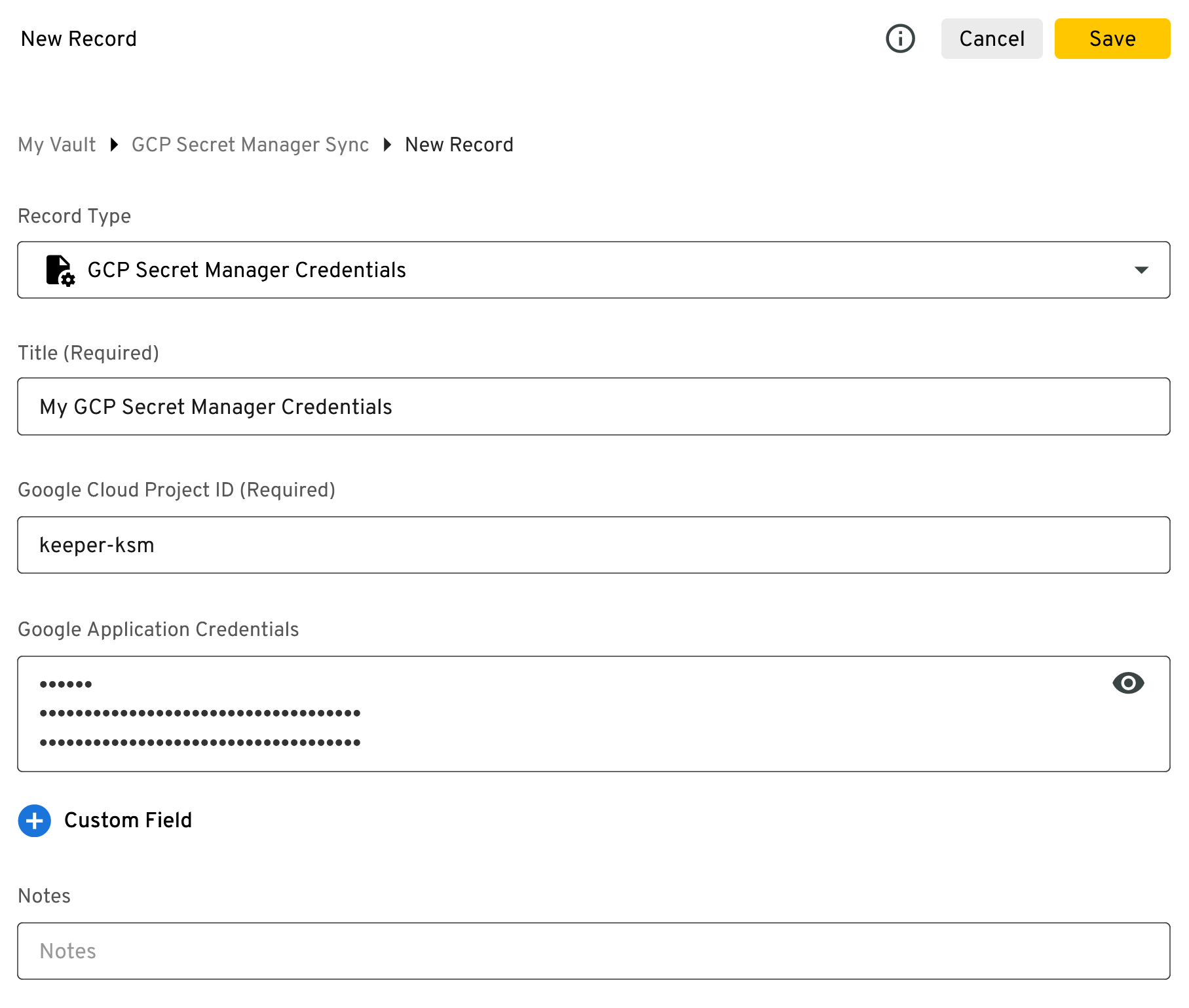

Then simply create a new record of the GCP Credentials type and enter the details into the corresponding fields.

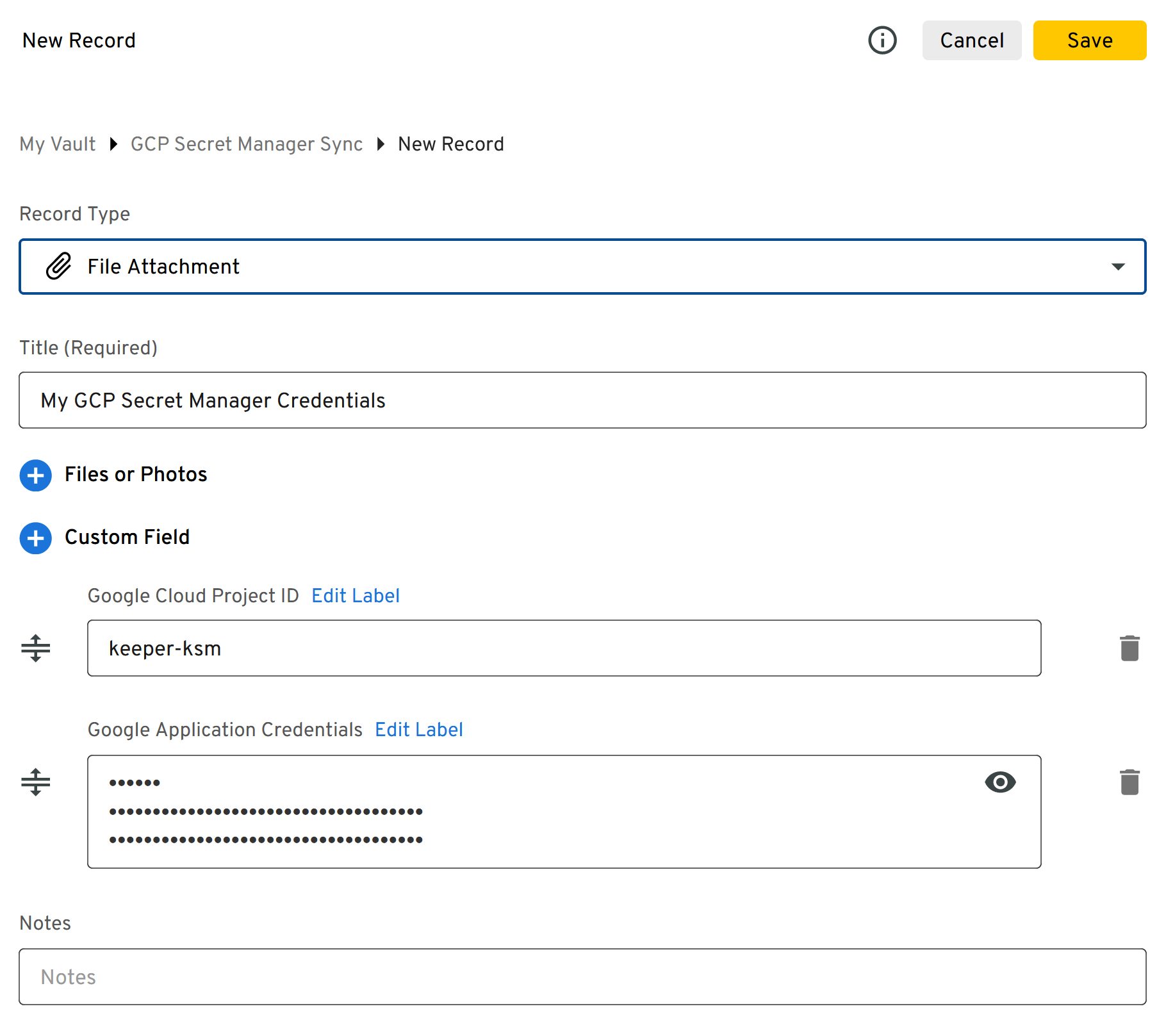

Make sure this new record is moved to a Shared Folder that is associated with your Secrets Manager application. #### (Method 2) Add Custom Fields To create a credentials record without creating a new record type, the required fields can be added as custom fields to a standard record. Create a new record of any type, then add Custom Fields of the 'Hidden Field' type for each required GCP field. Click "Edit Label" to change the labels for the corresponding field name. {% hint style="info" %} Any record type will work, but the "File Attachment" standard record type has no fields and will be cleaner looking when custom fields are added {% endhint %}

Then fill in each custom field and hit "Save" to save the record. ### 4. Create Value Mappings The KSM CLI `sync` command identifies which values to set using mappings that are defined on the command call. For each mapping passed to the command, a value with the given name will be populated with the given value from the Keeper Vault. These mappings follow this format: `--map "VALUE KEY" "KEEPER NOTATION"` `VALUE KEY` is the key name that the value will be assigned in GCP Secret Manager `KEEPER NOTATION` is a Keeper notation query of a value from a keeper record to set to the key Keeper notation is a query notation used by Keeper Secrets Manager to identify specific record values. The notation follows the general format of: `UID/`\[`field|custom_field]/fieldname`\ for example: `ae3d[...]d22e/field/password` See the [Keeper Notation documentation](https://docs.keeper.io/en/keeperpam/secrets-manager/about/keeper-notation) for more information {% hint style="info" %} Note that full record UIDs are not given in these examples {% endhint %} Full Mapping Example:\ `--map "MySQL_PWD" "jd3[...]i-fd/field/password"` Multiple mappings can be added to a single `sync` command\ `--map "MySQL_PWD" "jd3[...]i-fd/field/password" --map "MySQL_Login" "jd3[...]i-fd/field/login"` {% hint style="warning" %} Ensure that the records referenced by the Keeper Notation queries are in a shared folder that is shared with your Secrets Manager application {% endhint %} {% hint style="success" %} KSM sync is now ready to run {% endhint %} ## Run Sync To run the sync, use the KSM CLI `sync` command with the credentials record and value mapping. ### 1. Construct the Command Put together the KSM sync command with the GCP type. The format looks like the following: ``` ksm sync --type gcp --credentials [UID] --map [...] --map [...] ``` ### 2. Run a Dry-Run The sync command supports running a dry-run which will identify all changes that will be made to your GCP Secret Manager values without actually pushing the values or making changes. Use this to make sure your mapping queries are constructed properly. ``` ksm sync --type gcp --credentials [UID] --map [...] --map [...] --dry-run ``` ### 3. Run the Sync When ready, run the sync command without the dry-run option. This will push values from your Keeper Vault to GCP Secret Manager {% hint style="info" %} TIP: you can use `-m` as short hand for `--map` {% endhint %} ``` ksm sync --type gcp --credentials [UID] -m [...] -m [...] ```
